Principle of the experiment

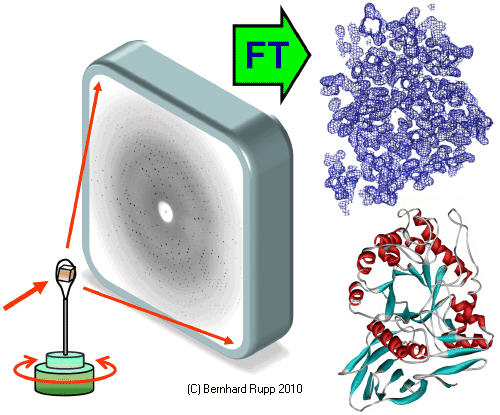

In a macromolecular X-ray diffraction experiment a small protein crystal is placed into an intense X-ray beam and the diffracted X-rays are collected with an area detector (it is advantageous to cool the crystals to low temperatures, primarily to prevent radiation damage). The diffraction pattern consists of reflections of different intensity, and a lot of patterns need to be collected to cover all necessary crystal orientations. After some data processing, we end up with a list of indexed reflections and their intensities. The reflections provide only a part of the information needed to reconstruct the molecular structure, they must be combined with phases to obtain the electron density (blue grid) by means of Fourier Transform (FT) reconstruction or synthesis. In this electron density, the crystallographer or an automated program builds an initial atomic model of the molecular structure. This model is refined and rebuilt until diffraction data calculated from it fit the experimetal data well, and the model itself has good stereochemistry.

You can read the first pages 1, 2, 3 of the introduction of my book Biomolecular Crystallography or buy the book from Amazon.

The diffracted X-rays are scattered by the crystal at a certain angle. The further backwards the x-rays scatter, the higher we say is the resolution of the data set. The extent to which the crystal diffracts determines how fine a detail we can actually distiguish in our final model of the structure. High resolution is thus desirable. Knowing the wavelength and the diffraction angle of a reflection, its resolution d can be easily calculated :

This is just a reformulation of the famous Bragg equation .


Click on the phenylalanine to learn more about resolution
To learn more about protein crystals, click on the little image
